Custom Design Parts

All Custom Parts are copyrighted and protected in design by law.

ArticleNr
--
Description

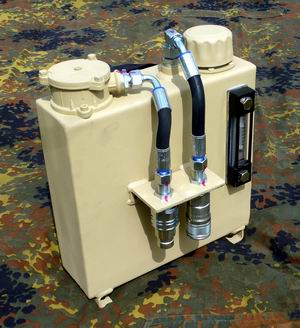

Hydraulic Modular Tank
Details

We design and manufacture Hydraulic Tanks for special applications

Produktabbildung: Name
Produktabbildung: Name
Airline Alu Floor System

ArticleNr
--
Description
Airline Alu Floor System
Details

Our Airline Alu-System Floor offers unparalleled flexibility in vehicle configuration and usage. Starting from service trucks up to mini buses with variable seating everything is possible!

Description

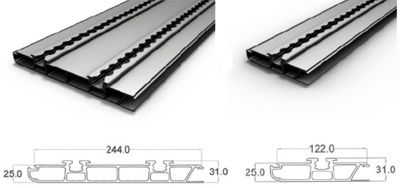

  • Modular aluminium system floor with 8 standard rails
  • Simply click in single and double rail profiles to realize almost any vehicle floor layout
  • TÜV - tested
Produktabbildung: Name

Options

  • Single or double Airline profiles
  • Various spacer profiles and covers
  • Comes complete with mounting instructions and TÜV certificate

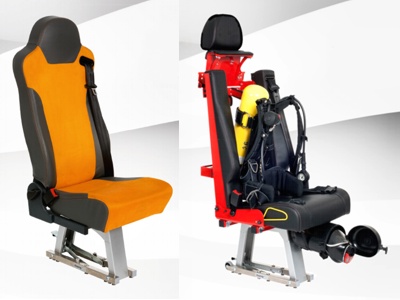

  • Approved seating systems for Aitrline available!
  • Tables and other interirior avilable!
Produktabbildung: Name

Usage

  • All common van types
  • Disabled transport vehicles
  • Special vehicles
  • Motorhomes
  • Most flexible method of implementation, fast installation
  • No special tools required for installation and setup
  • Isocyanate-free adhesive (no harmful vapours)
  • Rail profi les screwed only at each end (therefore no other work on vehicle under
  • body required, such as removing fuel tank, etc.)
  • Can be covered with carpet, wood, rubber or vinyl flooring
  • Low height and weight
ArticleNr
--
Description

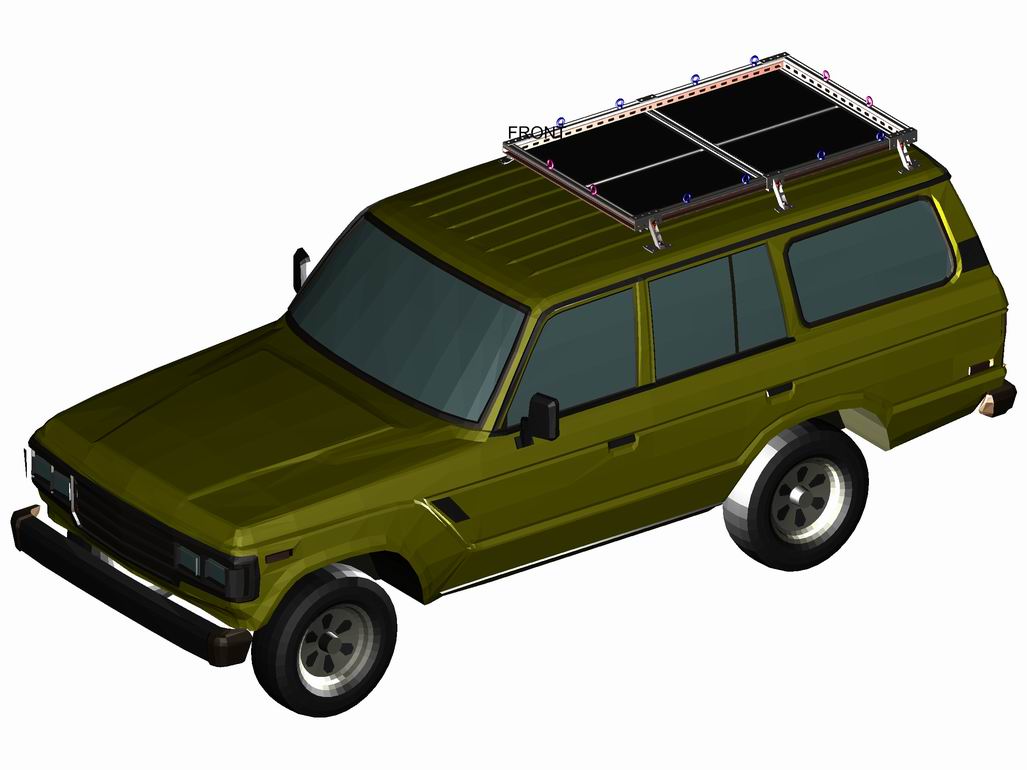

Modular Roof Rack System
Details

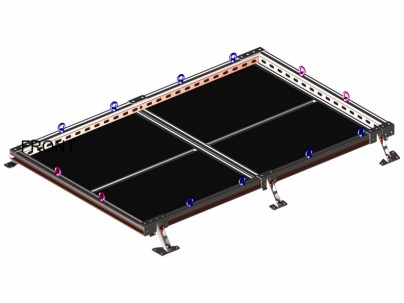

We are more than proud to present our modular Roof Rack System:

Produktabbildung: Name

Technical Data:

  • Module Size 750x1000mm or 750x1200mm
  • Expandable in steps of 750mm
  • Capacity: 100kg per module (depends on vehicle!)
  • Fixture and tie-down rails all-side (inside, outside, top and side)
  • Tie down rails also integrated in base plate
  • base plate stainless steel, hole punched (closed available)
  • material stainless steel INOX, 1.4301-grade
  • Fixture universal and vehicle-specific available (e.g. J6)

A picture of the system on a vehicle is available HERE

ArticleNr
--
Description

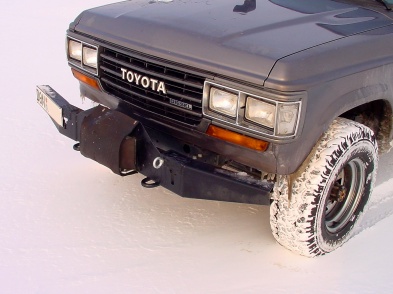

Front Winch Bumper
Details

Custom front winch bumpers & carrier systems, e.g. for the HJ60/61 or FJ62.

Produktabbildung: Name

Features and Options (Selection):

  • Individual configurable Front Carrier System
  • Material: Steel zinc-plated, Aluminum, INOX
  • The bumper can handle even very large winches
  • front frame extension
  • Hi-Lift (or similar) receptacles
  • 10ton-rated (double safety!) dual towing anchors
  • 2ton-rated (triple safety!) O-bolt for additional purposes
  • Checkerplate footsteps right and left for best engine maintenance
  • Greasable massive roller fairlead
  • branch deflectors
  • Hydraulic Couplings
  • Power Socket System
  • Optional fairlead fairing
  • and so on...

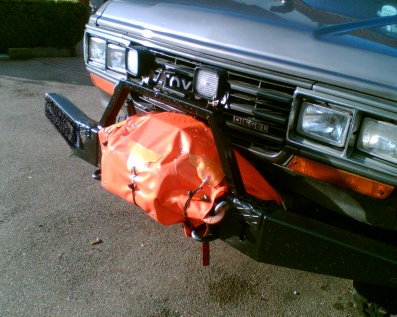

Options: e.g. removable Lightbar and Bullbar:

Produktabbildung: Name
ArticleNr
--
Description
Rear Bumper System
Details

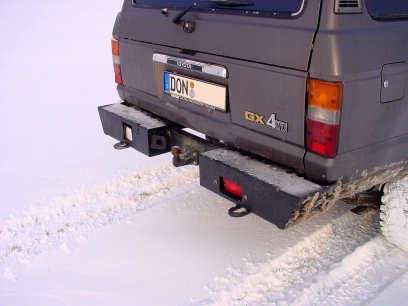

Custom rear bumper & carrier system, e.g. for th HJ60/61 or FJ62

Produktabbildung: Name

Features and Options (Selection):

  • Hi-Lift (or similar) double receptacles
  • 10ton-rated (double safety!) dual towing anchors
  • Large checcerplate footsteps right and left
  • Material: Steel, Aluminum, INOX
  • 60W back-up-light or working illumination (12 or 24V)
  • rear fog light
  • Hidden trailer socket
  • Hydraulic Couplings
  • Power Socket System
  • Options: modular carrier system capable of 100kgs of load
Produktabbildung: Name

Custom designed, available for every vehicle. All kinds of modifications possible!

ArticleNr
--
Description
Rear Modular Carrier
Details

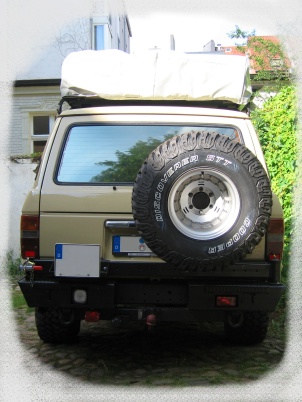

Modular Universal Pivot Rear Carrier System

Produktabbildung: Name

Features and Options (Selection):

  • modular system, multi-purpose, expandable
  • Carrier length / Swing Arm up to 1800mm
  • Max. load 150kg for Offroad Use (only depending on vehicle)
  • Universal Carreir System - all options simple attached to Swing Arm and bolted in place - takes only one minute!
  • depending on vehicle up to 22 standard units (TEs - 75mm per TE) usable length
  • Hinge mounting either bolt-on or welding
  • Hinge greasable, massive brass pivotbearing
  • all parts zinced, 5 years warranty against rust

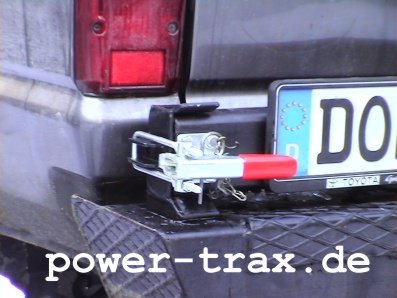

  • Locker double secured
  • Locker takes carried load to relieve hinge
Produktabbildung: Name
  • Gas Spring with end damping - lockable per request
  • Material: Carrier 5mm massive steel, Options 3-5mm Steel
  • Hinge 10mm
  • Hinge center pin 50mm Steel
  • Complete Carrier assy' to be removed from vehicle in less than 5 minutes
Produktabbildung: Name

Options (Selection):

  • Spare tire carrier (maximum dia 90cm - more per request) - 6TE
  • Bicycle holder - three bikes max.
  • Jerry Can Holder 20l single - 6TE
  • Jerry Can Holder 20l single / dual / triple can - 7TE
  • Antenna mount universal, maximum whip weight 20kg - 1TE
  • HiLift carrier 2 + 1TE, can be combined with other carriers
  • Step - 2TE
  • Genset universal Carrier up to 100kg - 8TE
  • Universal Carrier up to 50kg - 8TE
  • License Plate Holder - 6TE
  • Battery box 24V12Ah+12V/24Ah 2TE
  • Tank assembly up to 80l of fuel or water
  • Storage Box fibreglass 240l
  • Rooftop Ladder
  • quad Bicycle carrier up to 60kg net weight
  • lighting sets, 200 to 600 watts, 12, 24 and 230 volts
  • Motobike carrier, up to 150kg.

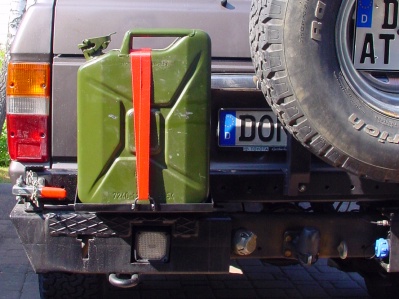

Single Jerry Can Carrier

Produktabbildung: Name

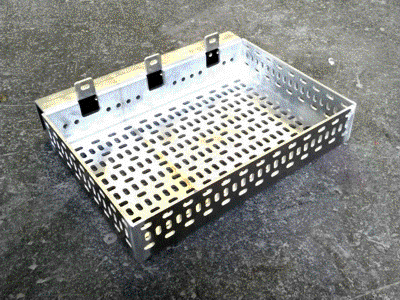

Multi-Carrier Aluminum for one, two or three Jerry Cans

Produktabbildung: Name

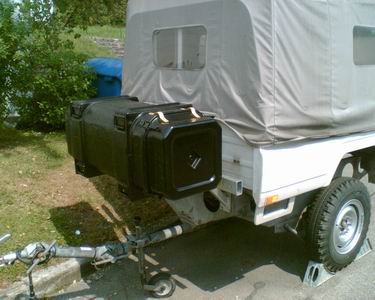

Carrier Box, watertight

Produktabbildung: Name

Genset Carrier

Produktabbildung: Name
ArticleNr
--
Description

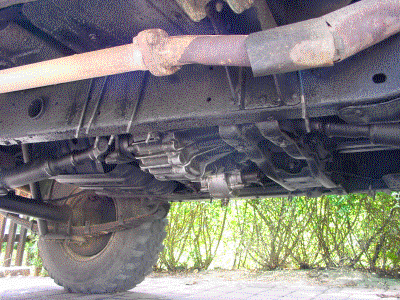

individual Skidplates
Details

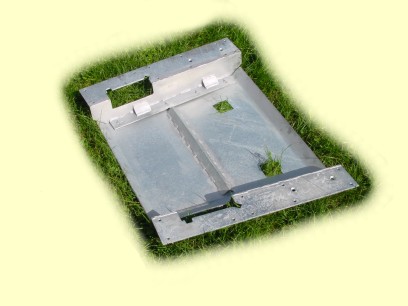

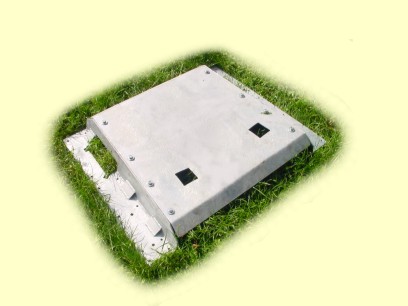

Custom designed Skidplates

Produktabbildung: Name

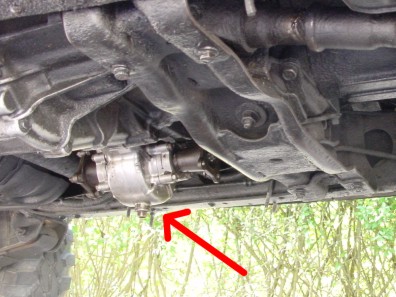

Example: toyota J4-Series

Produktabbildung: Name
Produktabbildung: Name
Produktabbildung: Name

Features and Options:

  • Steel, Aluminum or INOX
  • Maintenance and Service openings or lids
  • Machinery mounting
  • Single- or multiple pieces
ArticleNr
--
Description
Auxiliary Fuel Tank 90l with Skidplate
Details

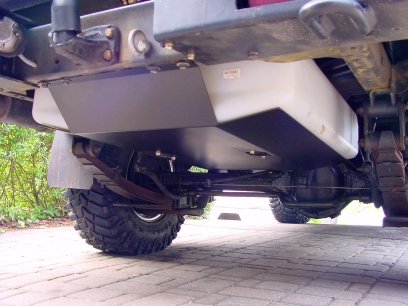

Auxiliary tank with 90l capacity, CE-approved. Comes complete with carrier, mounts and skidplate. Fits at spare wheels compartment.

Features: :

  • Capacity: 90l net
  • For diesel and vegetable oil
  • Plastic tank with feed and return line, filler line and fuel gauge sending unit preparation
  • Replaces 205R16 spare wheel (rectangular)
  • including mounts - requires spare tire carrier to be converted (included)
  • comes with skidplate, 3mm steel, zinced, single replacable
  • One-man mountable
  • including sending unit and gauge
Produktabbildung: Name
ArticleNr
--
Description

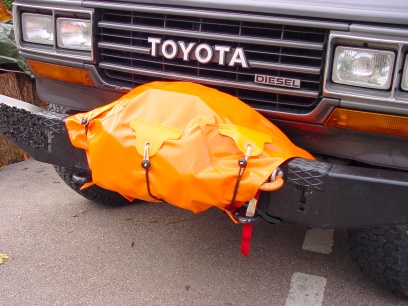

Winch Fairing 'total protection'
Details

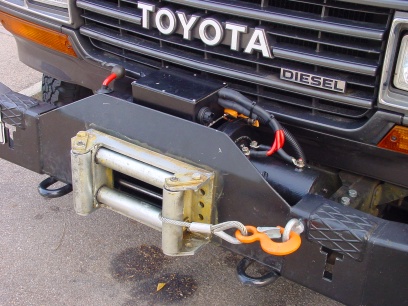

This is an example for a custom winch fairing to provide complete protection against water and dirt of a total winch including winch body, motor, control box and 'heavy duty' roller fairlead, done in signal orange colour:

Before:

Produktabbildung: Name

After:

Produktabbildung: Name

Some of the Details: :

  • Custom design to give full protection
  • durable truck blanket material
  • many colours available
  • stitched and welded
  • with rubber straps
  • designed to completely fulfill your requirements

We can offer products like this for any kind of vehicle, winch or other accessories. Made in approx. one day, vehicle is needed!
